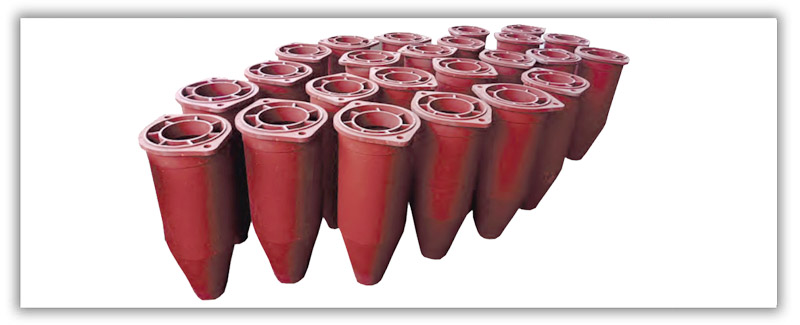

These cyclone cylinders are used in mechanical dust collectors. These casting are available in various compositions to match the flue gas temperature. The proper internal shape helps in better performance of the dust collections
Cyclone Dust Collectors / Cylinders are highly efficient devices used for the separation and removal of dust particles from flue gases in various industrial processes. These robust and precisely casted Cyclone Cylinders are designed to endure high temperatures and abrasive dust-laden air streams. Manufactured using CI (Cast Iron), SG Iron (Spheroidal Graphite Iron), and optionally SS (Stainless Steel), these Cyclone Dust Collectors ensure excellent mechanical strength and thermal resistance. Their aerodynamically optimized internal design allows efficient centrifugal separation of particles, resulting in improved air quality and reduced maintenance needs.
Salient Features :
Applications :

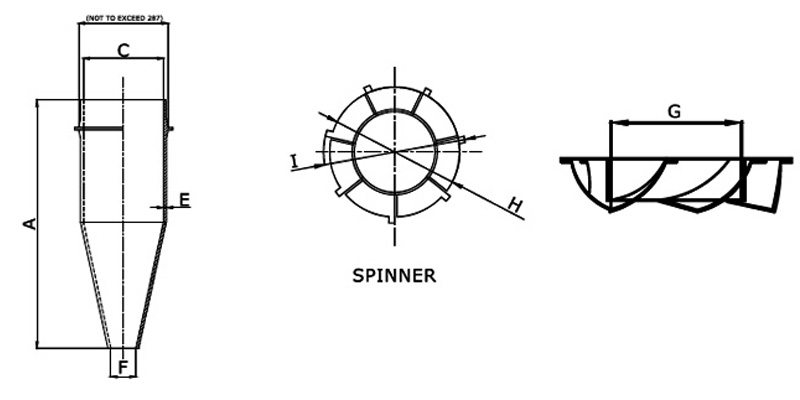

| DIMENSIONS ARE IN - MM | |||||||||
| Size | A | B | C | D | E | ØF | G | ØH | ØI |
| C1 | 785 | 283 | 254 | 312 | 9 | 80 | 156 | 250 | 274 |
| MATERIAL - WEAR RESISTANT NI-HARD, CASTING WITH MIN 500 BHN HARDENESS | |||||||||

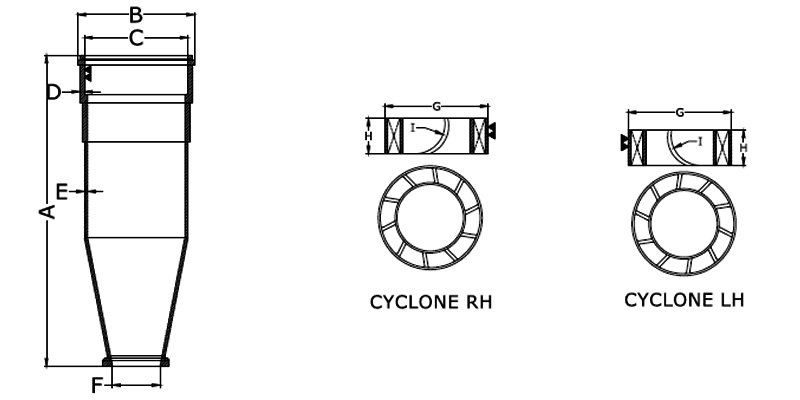

| DIMENSIONS ARE IN MM | |||||||||
| Size | A | B | C | D | E | F | G | ØH | I |
| C2 | 800 | 300 | 280 | 12 | 8 | 122 | 260 | 90 | R75 |
| MATERIAL IS 210 Gr FG 220 TO 260 WITH Cr | |||||||||

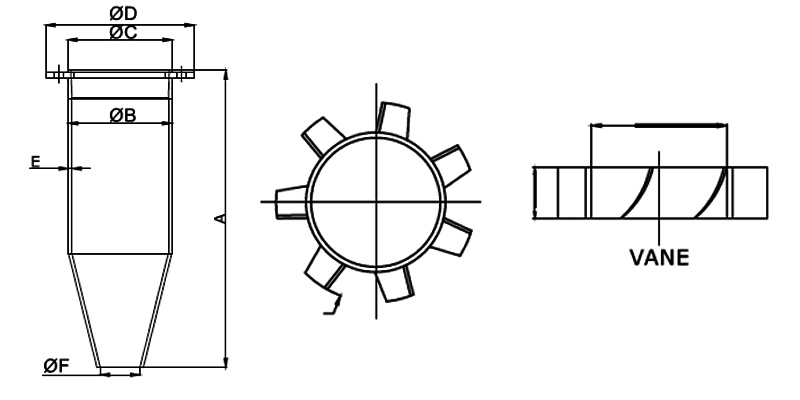

| DIMENSIONS ARE IN MM | |||||||||
| Size | A | ØB | ØC | ØD | E | ØF | G | ØH | ØI |
| C2 | 798 | 276 | 280 | 398 | 9 | 106 | 315 | 330 | 25 |
| MATERIAL - IS 3355 GR 2A | |||||||||
| DIMENSIONS ARE IN MM | |||||||||
| Size | A | ØB | ØC | ØD | E | ØF | G | ØH | ØI |
| C2 | 900 | 268 | 268 | 370 | 8 | 100 | 280 | 330 | 16 |
| MATERIAL - IS 3355 GR 2A | |||||||||
